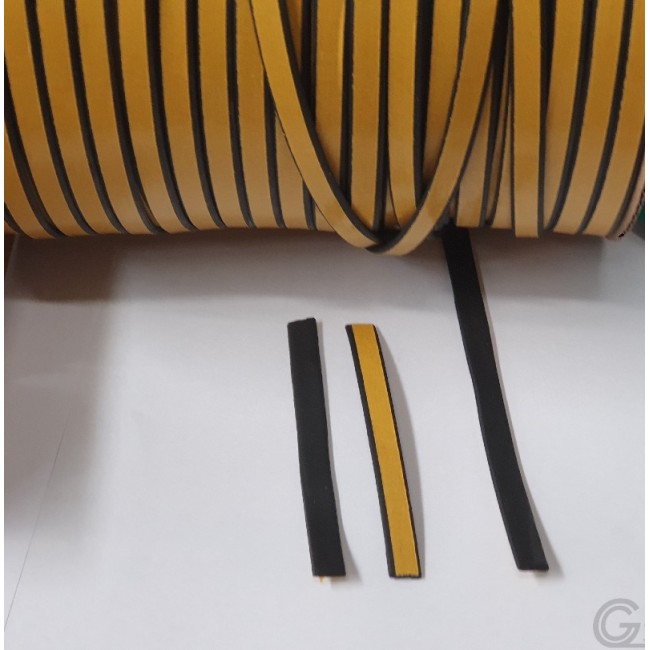

Draught excluder sponge rubber | Crown profile smooth | 2 x 10mm | per meter
This self-adhesive draught excluder is extremely suitable for durable seals on doors and frames, especially for wooden frames (with or without glazing bars) and antique glassware in windows and doors. It is therefore also called window rubber. These seals are water, dust and airtight. The weatherstrips (crown profiles) are made of high-quality EPDM rubber. Due to the self-adhesive glue layer (with fibres), this product is easy to install. EPDM sponge rubber crown band can also be used as sound insulation. Because the material is easy to press in, it can be used for seals that are not only flat but also have a larger joint profile.
| UV resistance | very good |
| Ozone resistance | very good |
| Application with oil | bad |
| Contact with copper and silver | corrosive |
| REACH | conform |
| RoHS | conform |
| Recyclable | confrom |
| CFC and HCFC free | conform |
| Shelf life | 1 year |
| HS code | 40081900 |
Searching for a specific item or custom made product but unable to find it on our website? Please contact us so we can be of further assistance.
|
Raw material |
EPDM |
|
Material |
Sponge rubber |
|
Profiles |
Crown band |
|
Colour |
Black |
| Cell structure | Closed |
| Hardheid (Shore 00) | 40-45 Shore 00 Range: 40 Shore 00 tot 55 Shore 00 |
| Hardheid (Shore A) | 15 Shore A Range: 12 Shore A tot 18 Shore A |
| Dichtheid |
350 kg/m³ tot 380 kg/m³ |
| FMVSS302 | Compliant |
| Temperature | -40 °C to +70 °C briefly +80 °C |
| Shrinkage 22h, 70 °C | <5% |
| Water absorption | <3% (ASTM D1056-14) |
| Ozone resistance 20%, 40 °C, 200pphm | > 336 hours (ISO 1431) |
| Compression set: 50%, 24h, 23 °C | 16% (ASTM D 1056-07) |
| Compression set: 50%, 24h, 40 °C |
35% (NF R 99211-80) |
| Tensile strenght | 560 kPa (DIN EN ISO 1798) Limit: >500 kPa |
| Elongation at break | 145% (DIN EN ISO 1798) Limit: > 125% |
| Press maximum % | 50% |
Draught excluder sponge rubber | Crown profile smooth | 2 x 10mm | per meter
- Brand: Trelleborg Sweden
- Product Code: 444880210
- Availability: In Stock
-
€1,57
- Ex Tax: €1,30
